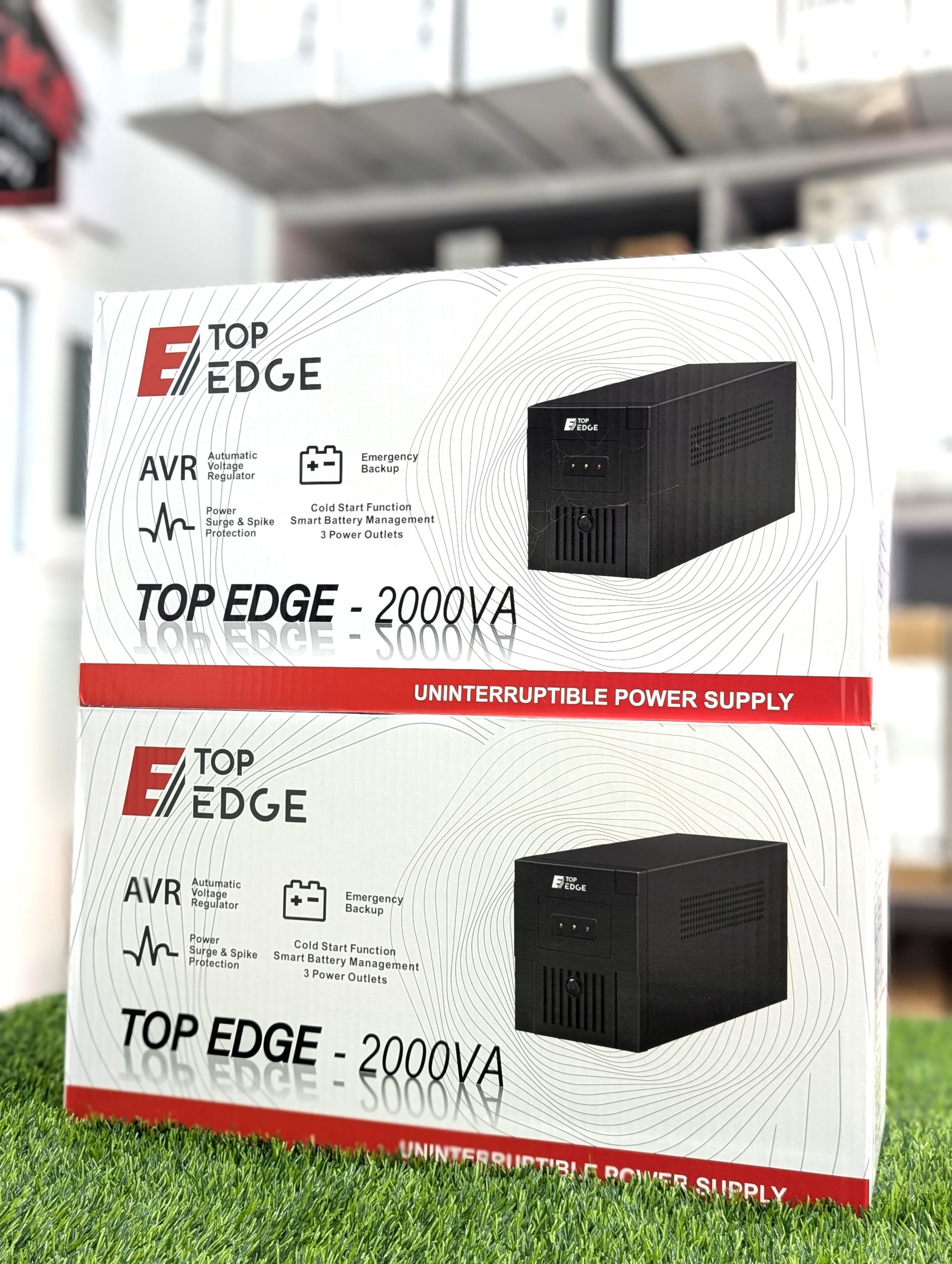

TOP EDGE-2000VA Uninterruptible Power Supply (UPS)

General Specification

Capacity : 2000va
Materials :Metal
Voltage : 110/120/vac or 220/230/240VAC
Voltage range : 86-230VAC or 140 -285 Vac
Frequency range : 60/50Hz (Auto sen sing)
Output voltage : 110/120 VAC or VAC
AC voltage regulation (bat mode) : +-10%
Frequency range (bat mode) : 60h zor 50 Hz +_ 1 Hz
Transfer time : typical 2-6ms
Waveform (bat mode) : simulated sine wave
Power factor : 0.6
Battery type & number : 12v, 5ah x1
Floating charging voltage : 13.7vdc
Charging ability : 4-6 hours recover to 90% capacity
Full protection : overload, discharge, and overcharge protection
Line mode : green lightning
Fault : Red lighting
Battery mode : sound 10 seconds
Low battery : sound every 1 seconds
Fault : keep sounding.
